Off-Road Off-Road

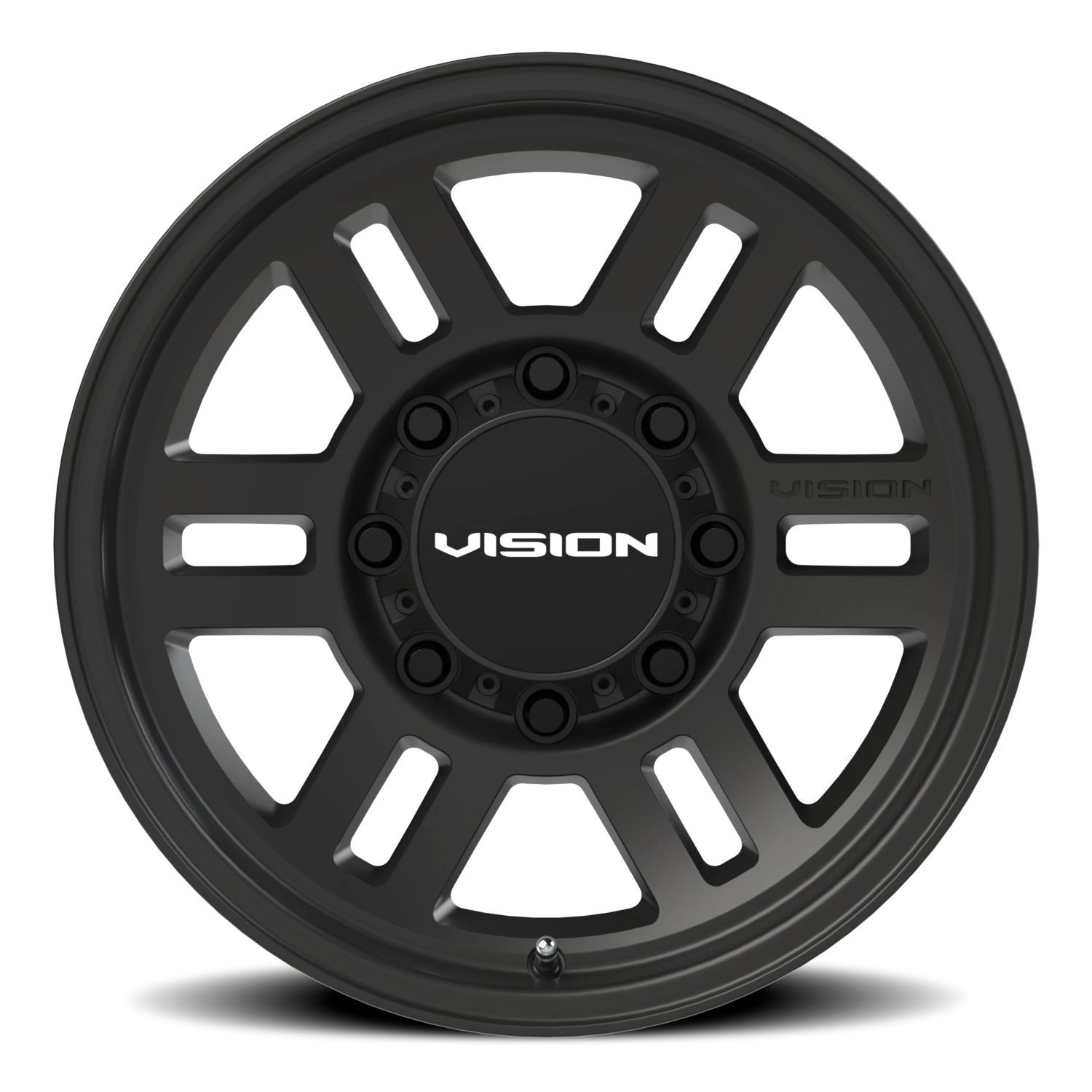

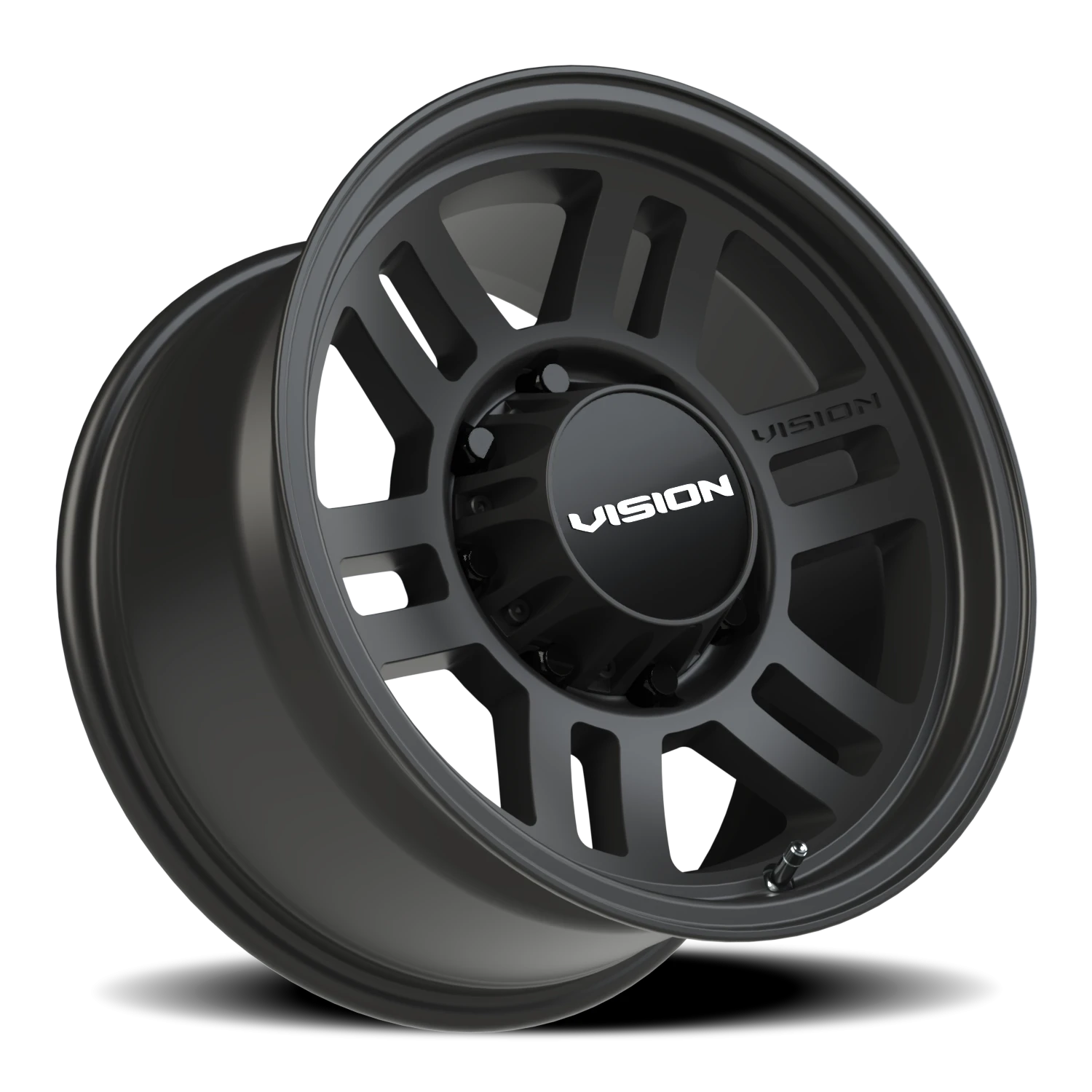

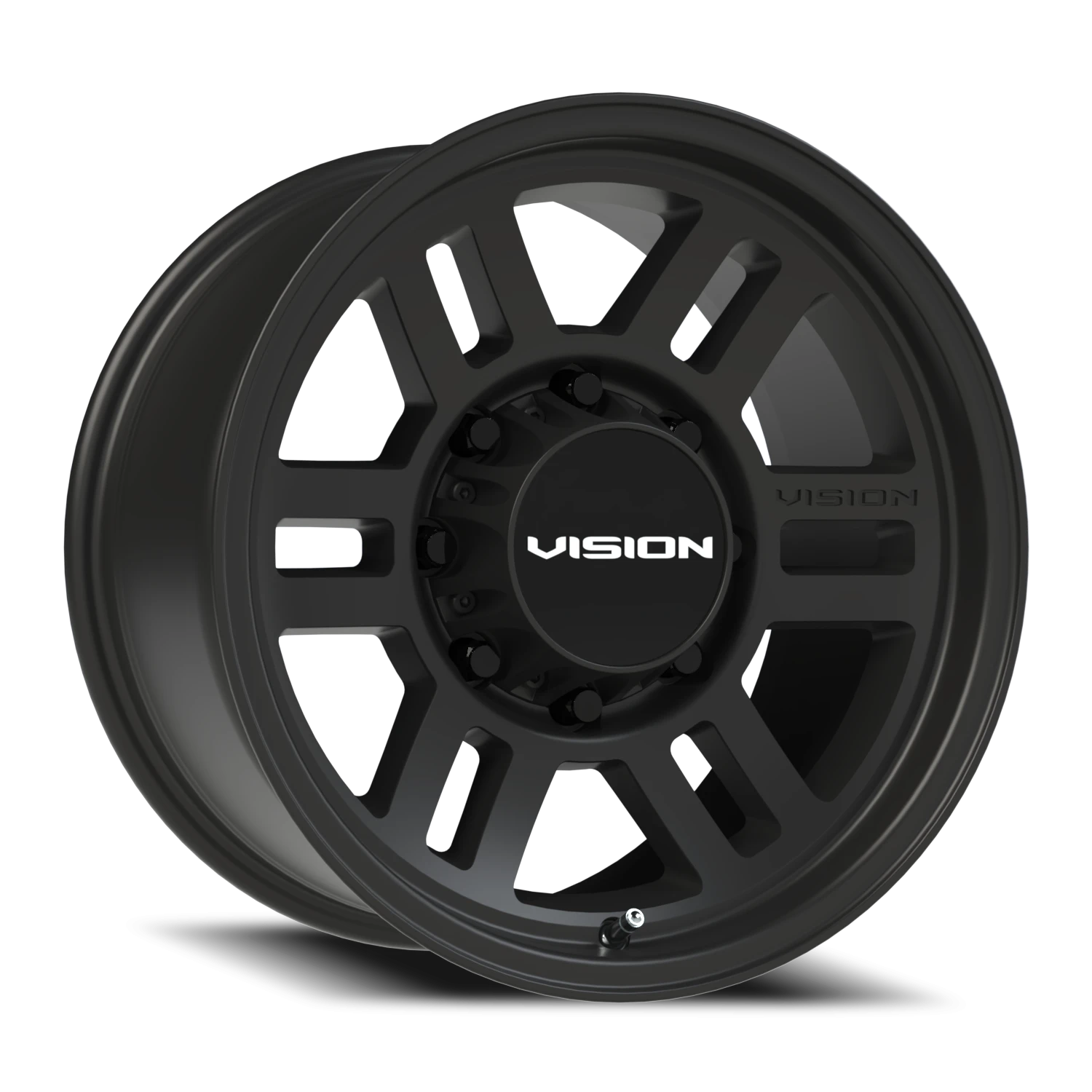

355 Manx 2 Overland Satin Black Satin Black Satin Black Satin Black

Available in Sizes: 15x7.50, 16x8, 17x9

Technical Specifications

Part Number Size BP 1 BP 2 Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
355-5761SB-12 15X7.50 5x4.75 Satin Black 73.10 -12 3.730 C354SB-65V 2500 0
355-5761SG-12 15X7.50 5x4.75 Satin Grey 73.10 -12 3.730 C354SB-65V 2500 0
355-5765SB-12 15X7.50 5x4.5 Satin Black 83 -12 3.730 C354SB-65V 2500 0
355-5765SG-12 15X7.50 5x4.5 Satin Grey 83 -12 3.730 C354SB-65V 2500 0
355-5773SB-12 15X7.50 5x5 Satin Black 78.10 -12 3.730 C354SB-65V 2500 0
355-5773SG-12 15X7.50 5x4.75 Satin Grey 78.10 -12 3.730 C354SB-65V 2500 0
355-5783SB-12 15X7.50 6x5.5 Satin Black 110 -12 3.730 C354SB-6V 2500 0
355-5783SG-12 15X7.50 6x5.5 Satin Grey 110 -12 3.730 C354SB-6V 2500 0
355-5785SB-12 15X7.50 5x5.5 Satin Black 110 -12 3.730 C354SB-5V 2500 0
355-5785SG-12 15X7.50 5x5.5 Satin Grey 110 -12 3.730 C354SB-5V 2500 0
Part Number Size BP 1 BP 2 Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
355-6865SB0 16X8 5x4.5 Satin Black 83 0 4.500 C354SB-65V 2500 0
355-6865SG0 16X8 5x4.5 Satin Grey 83 0 4.500 C354SB-65V 2500 0
355-6873SB0 16X8 5x5 Satin Black 78.10 0 4.500 C354SB-65V 2500 0
355-6873SG0 16X8 5x5 Satin Grey 78.10 0 4.500 C354SB-65V 2500 0
355-6881SB0 16X8 8x6.5 Satin Black 125.20 0 4.500 C354SB-8V 3650 0
355-6881SG0 16X8 8x6.5 Satin Grey 125.20 0 4.500 C354SB-8V 3650 0
355-6883SB0 16X8 6x5.5 Satin Black 110 0 4.500 C354SB-6V 2500 0
355-6883SG0 16X8 6x5.5 Satin Grey 110 0 4.500 C354SB-5V 2500 0
355-6885SB0 16X8 5x5.5 Satin Black 110 0 4.500 C354SB-5V 2500 0
355-6885SG0 16X8 5x5.5 Satin Grey 110 0 4.500 C354SB-6V 2500 0
Part Number Size BP 1 BP 2 Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
355-7936SB20 17X9 6x135 Satin Black 87.10 20 5.750 C354SB-6V 2500 0
355-7936SG20 17X9 6x135 Satin Grey 87.10 20 5.750 C354SB-6V 2500 0
355-7965SB20 17X9 5x4.5 Satin Black 83 20 5.750 C354SB-65V 2500 0
355-7965SG20 17X9 5x4.5 Satin Grey 83 20 5.750 C354SB-65V 2500 0
355-7970SB12 17X9 8x170 Satin Black 125.20 12 5.500 C354SB-8V 3650 0
355-7970SG12 17X9 8x170 Satin Grey 125.20 12 5.500 C354SB-8V 3650 0
355-7973SB20 17X9 5x5 Satin Black 78.10 20 5.750 C354SB-65V 2500 0
355-7973SG20 17X9 5x5 Satin Grey 78.10 20 5.750 C354SB-65V 2500 0
355-7981SB12 17X9 8x6.5 Satin Black 125.20 12 5.500 C354SB-8V 3650 0
355-7981SG12 17X9 8x6.5 Satin Grey 125.20 12 5.500 C354SB-8V 3650 0
355-7983SB18 17X9 6x5.5 Satin Black 106.20 18 5.680 C354SB-6V 2500 0
355-7983SG18 17X9 6x5.5 Satin Grey 106.20 18 5.680 C354SB-6V 2500 0
355-7985SB18 17X9 5x5.5 Satin Black 108 18 5.680 C354SB-5V 2500 0
355-7985SG18 17X9 5x5.5 Satin Grey 108 18 5.680 C354SB-5V 2500 0

See On Vehicle - Fitment Guide
